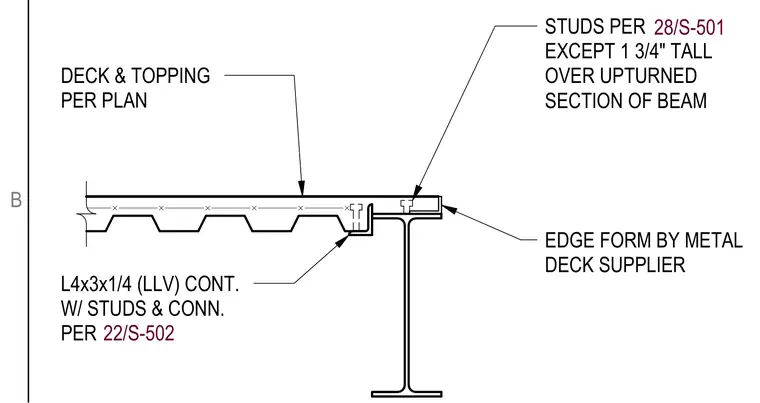

A continuous L4x3x1/4 angle with long leg vertical supports the metal deck and concrete topping at the perimeter steel beam. Shear studs are provided per plan, except for studs measuring 1 3/4 inches tall located over the upturned section of the beam. A metal edge form supplied by the deck manufacturer caps the edge of the assembly.
L4x3x1/4 (LLV) CONT. W/ STUDS & CONN. PER 22/S-502 DECK & TOPPING PER PLAN EDGE FORM BY METAL DECK SUPPLIER STUDS PER EXCEPT 1 3/4" TALL OVER UPTURNED SECTION OF BEAM 28/S-501 B
