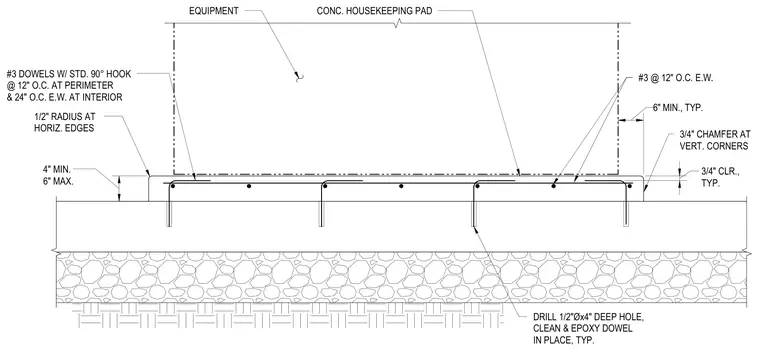

A concrete housekeeping pad is anchored to an existing slab on grade using number three dowels with standard ninety-degree hooks spaced at twelve inches on center at the perimeter and twenty-four inches on center each way at the interior. The pad has a typical thickness of four inches minimum to six inches maximum and features a three-quarter-inch chamfer at vertical corners and a half-inch radius at horizontal edges. Reinforcing within the pad consists of number three bars at twelve inches on center each way with three-quarter-inch typical clearance. Dowels are installed by drilling half-inch diameter by four-inch deep holes, cleaning them, and setting with epoxy.
1/2" RADIUS AT HORIZ. EDGES #3 DOWELS W/ STD. 90° HOOK @ 12" O.C. AT PERIMETER & 24" O.C. E.W. AT INTERIOR EQUIPMENT CONC. HOUSEKEEPING PAD 6" MIN., TYP. #3 @ 12" O.C. E.W. 3/4" CHAMFER AT VERT. CORNERS DRILL 1/2"Øx4" DEEP HOLE, CLEAN & EPOXY DOWEL IN PLACE, TYP. 3/4" CLR., TYP. 4" MIN. 6" MAX.
