Structural · S-QSMBT

Cable Net Attachment at Steel Beam Level 3

Materials

anchor

Elements

Beams Walls Curtain Walls Arches Anchors / Embeds

Connections

Base Plate / Anchorage Welded Connection

About this detail

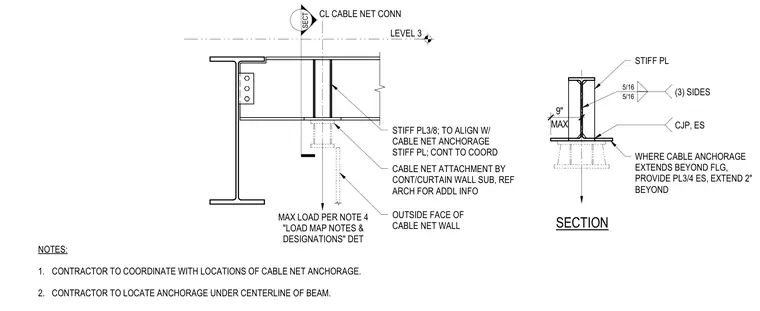

A cable net attachment assembly occurs at Level 3 framing. A three-eighths-inch thick stiffener plate aligns with the cable net anchorage, which is provided by the curtain wall subcontractor. Where the cable anchorage extends beyond the steel flange by up to nine inches maximum, a three-quarter-inch plate is provided on each side and extended two inches beyond the stiffener plate. Five-sixteenths-inch fillet welds are specified along three sides, supplemented by a complete joint penetration weld on each side. The contractor must coordinate anchorage locations and center them under the beam centerline.
