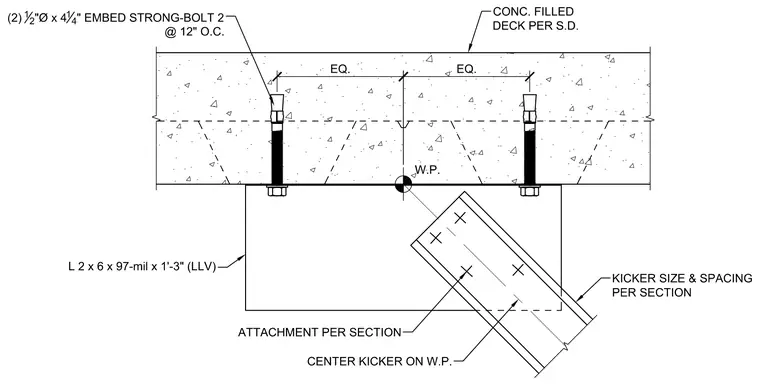

A structural kicker brace connects to a concrete-filled metal deck using an L 2x6x97-mil plate anchored by two 1/2-inch diameter by 4-1/4-inch embedment wedge anchors spaced at 12 inches on center. The diagonal kicker member aligns with a work point on the plate and attaches with sizing and spacing per structural sections. The concrete-filled metal deck acts as the overhead support, with anchor placement and work point centered symmetrically across the assembly.
