Structural · S-QSHNW

Typical Truss Bracing Detail at Roof Step

Materials

Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Roofs Decks Trusses Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Expansion / Slip Connection

About this detail

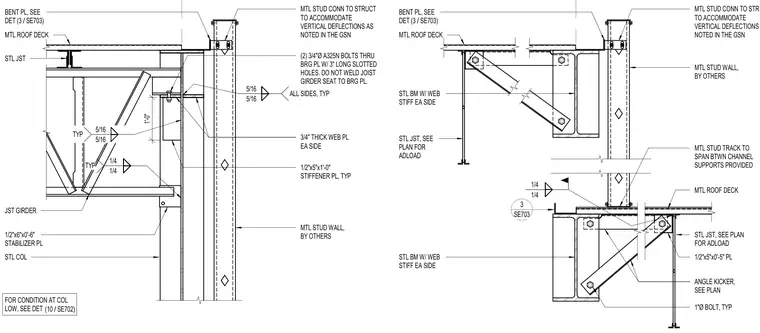

Structural steel framing and truss bracing conditions occur at a roof step transition. The steel column supports a joist girder seat connected via a bearing plate with two three-quarter-inch diameter A325N bolts through three-inch long slotted holes, leaving the joist girder seat left unwelded to the bearing plate. Additional members include a half-inch by five-inch by one-foot stiffener plate welded with five-sixteenth-inch fillet welds on all sides, three-quarter-inch thick web plates on each side, and a half-inch by six-inch by six-inch stabilizer plate. Metal roof decks bear on steel joists and steel beams equipped with web stiffeners on each side. Angle kickers and metal stud walls are tied back to the structure with provisions for vertical deflections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
