Structural · S-QSF8E

Slab-On-Grade Edge and Curb Detail

Materials

Elements

Floors / Slabs Waterproofing / Flashing Site / Paving

About this detail

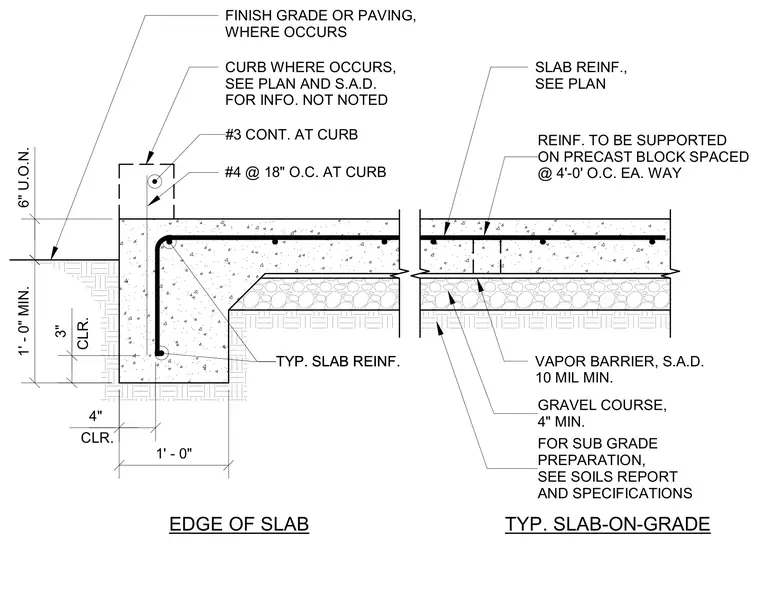

This concrete slab-on-grade assembly features an edge thickened into a curb with continuous reinforcing steel and vertical bars spaced eighteen inches on center. The main slab reinforcement is supported on precast concrete blocks spaced at four feet on center each way. Below the concrete slab lies a ten mil minimum vapor barrier over a four inch minimum gravel course bearing on prepared subgrade. A three inch and four inch clear dimension is maintained at the perimeter footing edge.
