Structural · S-QSEY8

Concrete Tilt-Up Panel Corner Connection Detail

Materials

Concrete Steel

Elements

Roofs Decks Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

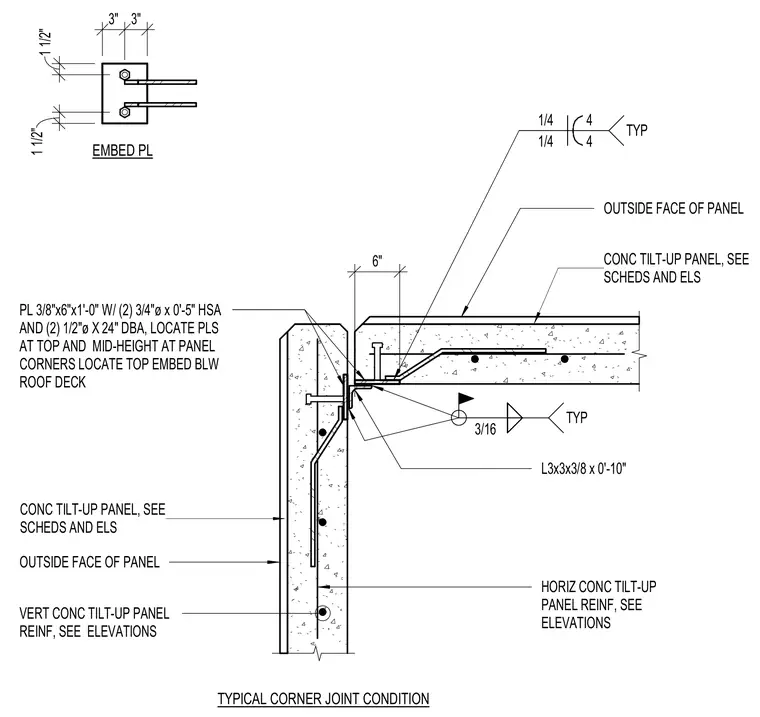

Two concrete tilt-up wall panels meet at a corner joint tied together by a three-eighths-inch by six-inch by one-foot-zero-inch embed plate welded to a three-by-three by three-eighths-inch angle that is ten inches long. The embed plate is anchored into the concrete with two three-quarters-inch-diameter by zero-foot-five-inch headed stud anchors and two one-half-inch-diameter by twenty-four-inch deformed bar anchors, positioned at the top and mid-height of the panel corners with the top embed located below the roof deck. Vertical and horizontal concrete tilt-up panel reinforcement is placed per the elevations and schedules. The outside face of the panel features a six-inch joint condition tied with typical fillet welds.
