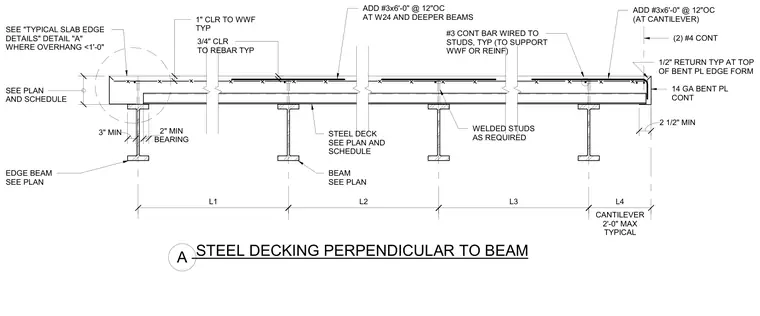

Composite concrete floor slab on steel decking running perpendicular to structural steel beams, featuring welded shear studs and continuous reinforcing bars. A fourteen gauge continuous bent plate edge form with a half-inch top return supports the slab edge, configured with a maximum two-foot cantilever. Additional number three reinforcing bars at six feet zero inches long are spaced at twelve inches on center at cantilevers, at W24 and deeper beams, and per plan. A continuous number three bar is wired to the studs to support welded wire fabric or reinforcement. The assembly maintains standard clearances including one inch to welded wire fabric and three-quarters of an inch to rebar, with minimum two-inch beam bearing.
ADD #3x6'-0" @ 12"OC (AT CANTILEVER) STEEL DECKING PERPENDICULAR TO BEAM #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) SEE PLAN AND SCHEDULE EDGE BEAM SEE PLAN BEAM SEE PLAN STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS 14 GA BENT PL CONT (2) #4 CONT CANTILEVER 2'-0" MAX TYPICAL SEE "TYPICAL SLAB EDGE DETAILS" DETAIL "A" WHERE OVERHANG <1'-0" 1/2" RETURN TYP AT TOP OF BENT PL EDGE FORM L1 L2 L3 L4 2 1/2" MIN . 3" MIN BEARING 2" MIN 1" CLR TO WWF TYP 3/4" CLR TO REBAR TYP A . .
