Structural · S-QS5HM

Typical Shear Plate Bolt Spacing

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Bolted Connection

About this detail

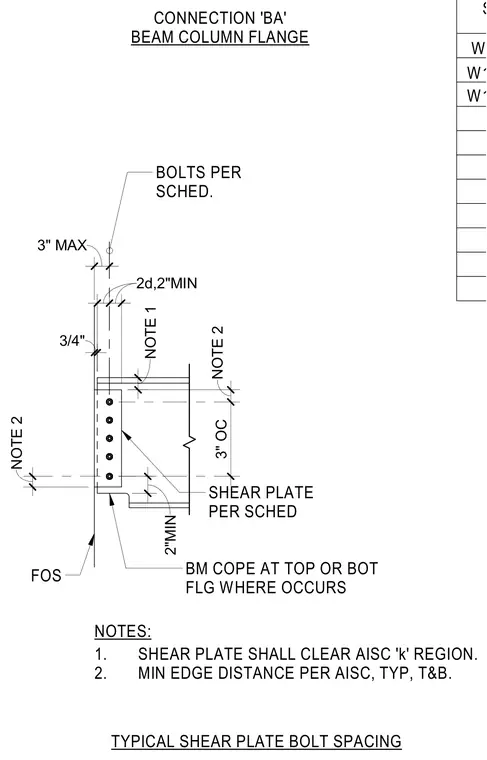

A structural steel beam connects to a column flange using a welded shear plate and bolts sized per schedule. The beam features a top or bottom flange cope where required, with the shear plate clearing the AISC k-region. Fasteners are spaced at 3 inches on center vertically with specified minimum edge distances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
