A hollow structural section column bears onto a wide flange beam sized per plan via a three-quarter-inch plate measuring the flange width plus one inch minimum. Four seven-eighth-inch diameter bolts provide the primary connection, with four three-quarter-inch diameter bolts used where the flange width is less than or equal to four and a half inches. A full depth three-eighth-inch stiffener plate is welded to each side, or alternatively a full height shear tab is used where a perpendicular beam occurs. A quarter-inch fillet weld secures the base plate assembly to the supporting wide flange beam.

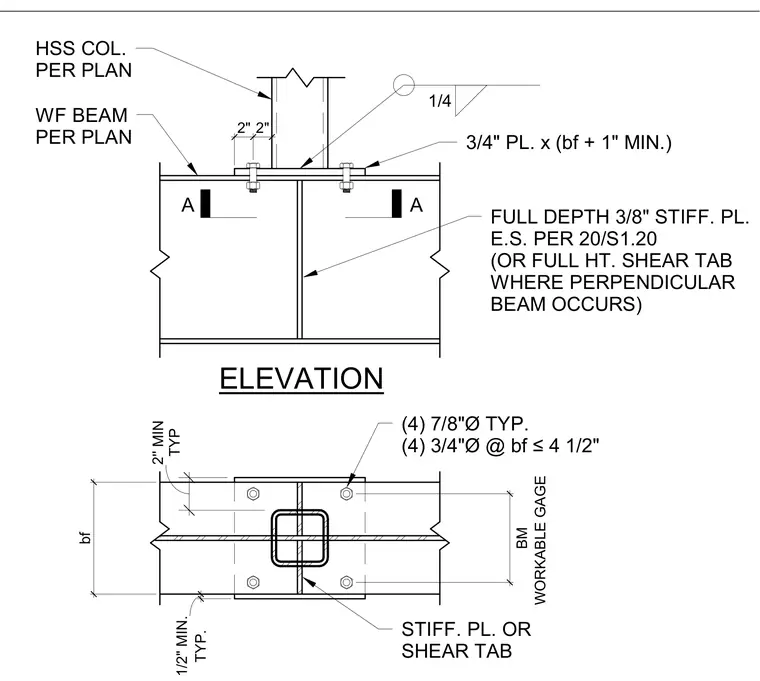

HSS COL. PER PLAN WF BEAM PER PLAN 3/4" PL. x (bf + 1" MIN.) FULL DEPTH 3/8" STIFF. PL. E.S. PER 20/S1.20 (OR FULL HT. SHEAR TAB WHERE PERPENDICULAR BEAM OCCURS) ELEVATION A (4) 7/8"Ø TYP. (4) 3/4"Ø @ bf ≤4 1/2" STIFF. PL. OR SHEAR TAB bf TYP. 1/2" MIN. 2" 2" A 1/4 WORKABLE GAGE BM TYP 2'' MIN
