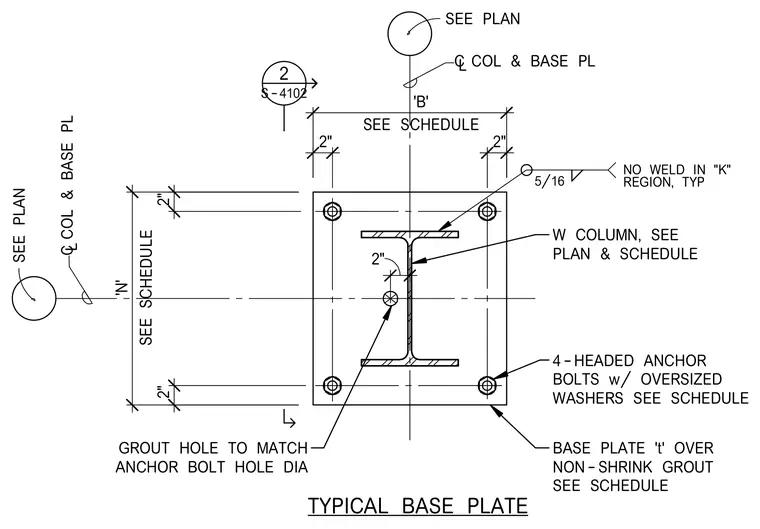

A wide flange steel column is welded to a base plate of thickness t over non-shrink grout, secured by four headed anchor bolts with oversized washers per the structural schedule. A two-inch grout hole is provided to match the anchor bolt hole diameter at the center of the plate web. Fillet welds connect the column flanges to the base plate, leaving the web k-region unwelded typically.
SEE PLAN C L SEE PLAN C L 4-HEADED ANCHOR BOLTS w/ OVERSIZED WASHERS SEE SCHEDULE W COLUMN, SEE PLAN & SCHEDULE BASE PLATE 't' OVER NON-SHRINK GROUT SEE SCHEDULE NO WELD IN "K" 5/16 REGION, TYP TYPICAL BASE PLATE COL & BASE PL COL & BASE PL 2" GROUT HOLE TO MATCH ANCHOR BOLT HOLE DIA SEE SCHEDULE 'B' SEE SCHEDULE 'N' 2" 2" 2" 2" 2 S-4102
