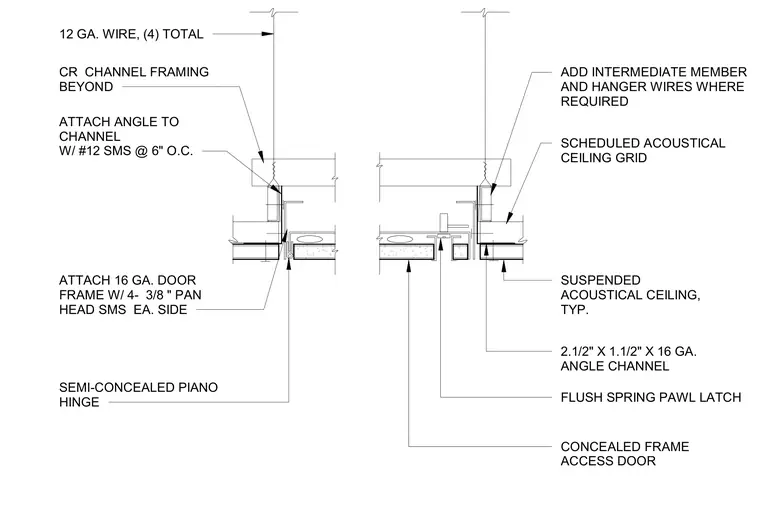

A concealed frame access door integrates into a suspended acoustical ceiling using a two-and-one-half-inch by one-and-one-half-inch by sixteen-gauge angle channel. The sixteen-gauge door frame secures with four three-eighth-inch pan head sheet metal screws on each side. The angle channel fastens to the cold-rolled channel framing beyond using number twelve sheet metal screws spaced at six inches on center. A semi-concealed piano hinge and a flush spring pawl latch operate the door assembly. Twelve-gauge hanger wires and intermediate members support the ceiling grid and framing where required.
SEMI-CONCEALED PIANO HINGE CONCEALED FRAME ACCESS DOOR FLUSH SPRING PAWL LATCH 2.1/2" X 1.1/2" X 16 GA. ANGLE CHANNEL SUSPENDED ACOUSTICAL CEILING, TYP. ATTACH 16 GA. DOOR FRAME W/ 4- 3/8 " PAN HEAD SMS EA. SIDE ATTACH ANGLE TO CHANNEL W/ #12 SMS @ 6" O.C. CR CHANNEL FRAMING BEYOND SCHEDULED ACOUSTICAL CEILING GRID ADD INTERMEDIATE MEMBER AND HANGER WIRES WHERE REQUIRED 12 GA. WIRE, (4) TOTAL
