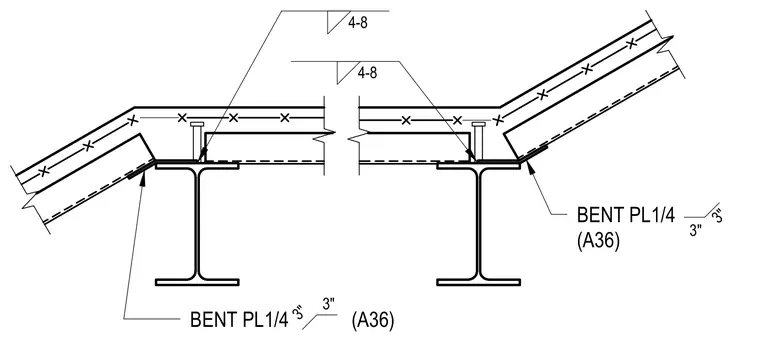

A bent plate measuring one-quarter inch thick in ASTM A36 steel connects the folded structural assembly. The joint incorporates matching one-quarter inch bent plates detailed at three inches by three inches. The assembly rests on parallel wide flange steel supports with welded connections and embedded anchor or shear studs. The drawing specifies field welds designated by symbol 4-8 along the structural interface.
