A cold-formed steel beam is anchored adjacent to a concrete slab with a typical one-half-inch maximum gap and fastened using four powder-actuated fasteners with three-quarter-inch concrete embedment. The cold-formed steel beam section utilizes T300-54 framing connected with three number 10 screws in each leg. Top and bottom welds or connections are specified at three-thirty-seconds with one to twelve spacing.

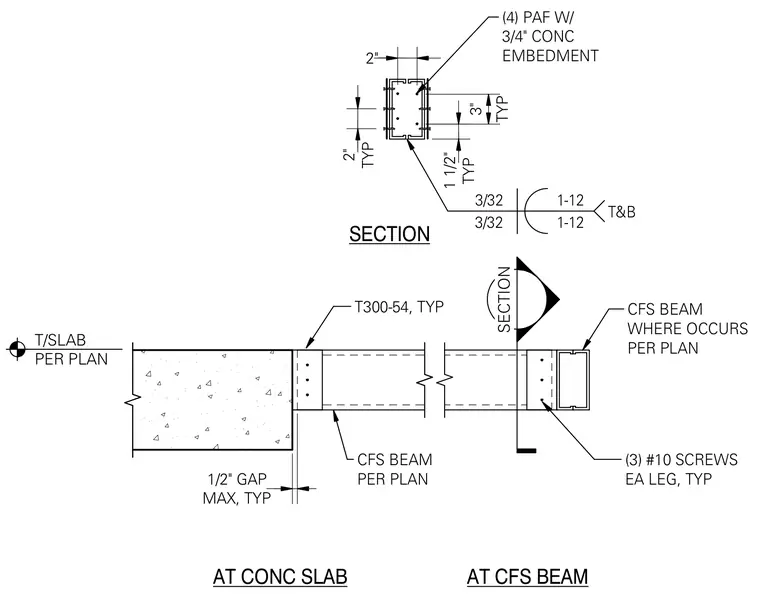

MAX, TYP 1/2" GAP CFS BEAM PER PLAN SECTION T/SLAB PER PLAN 2" (4) PAF W/ 3/4" CONC EMBEDMENT 3/32 1-12 3/32 1-12 T&B SECTION TYP 1 1/2" TYP 3" TYP 2" AT CONC SLAB AT CFS BEAM T300-54, TYP (3) #10 SCREWS EA LEG, TYP CFS BEAM WHERE OCCURS PER PLAN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
