Shear studs are welded through the metal deck into the supporting beam flange according to specific spacing and clearance requirements. Two studs per flute are specified for beam flanges greater than or equal to five and a half inches, and one stud per flute is typical for smaller dimensions. Specific edge distances and clearances from the centerline of the beam are maintained for structural compliance.

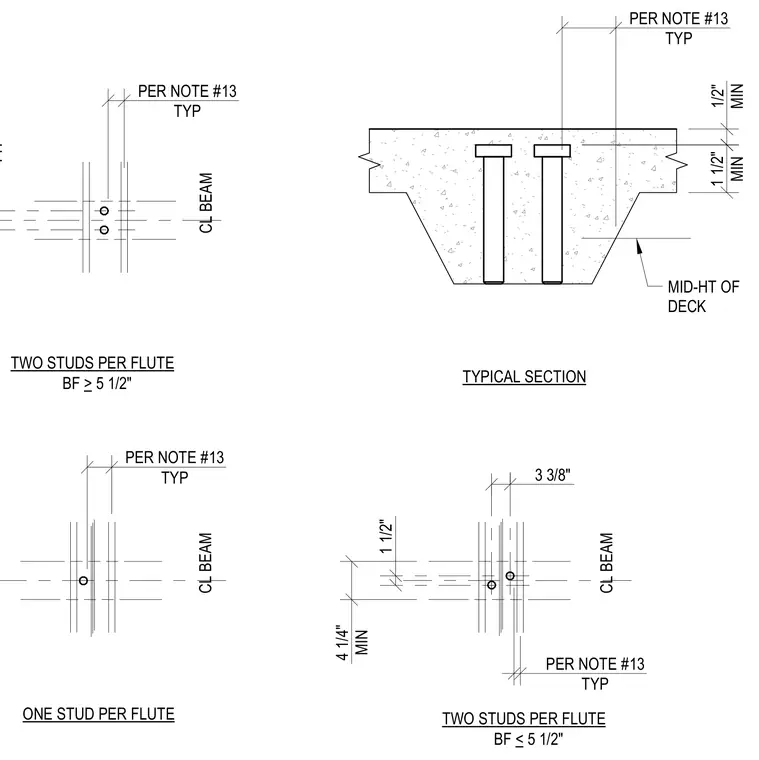

TWO STUDS PER FLUTE BF > 5 1/2" TWO STUDS PER FLUTE BF < 5 1/2" ONE STUD PER FLUTE TYPICAL SECTION 3 3/8" 1 1/2" TYP 4 1/4" MIN PER NOTE #13 TYP PER NOTE #13 TYP PER NOTE #13 TYP 1/2" MIN 1 1/2" MIN PER NOTE #13 TYP CL BEAM CL BEAM CL BEAM MID-HT OF DECK
