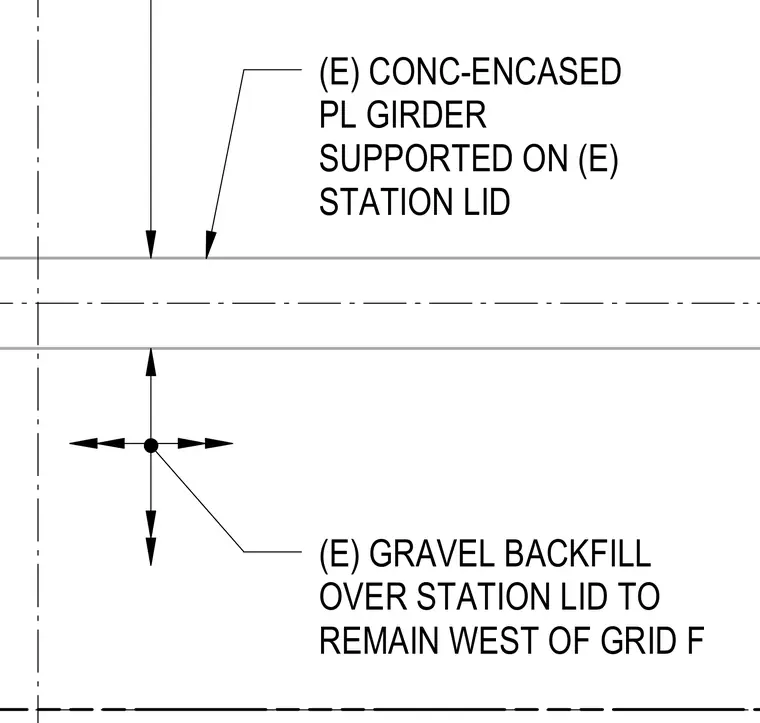

An existing concrete-encased plate girder is supported directly on an existing station lid. Existing gravel backfill is placed over the station lid to remain west of grid F.
(E) CONC-ENCASED PL GIRDER SUPPORTED ON (E) STATION LID (E) GRAVEL BACKFILL OVER STATION LID TO REMAIN WEST OF GRID F
