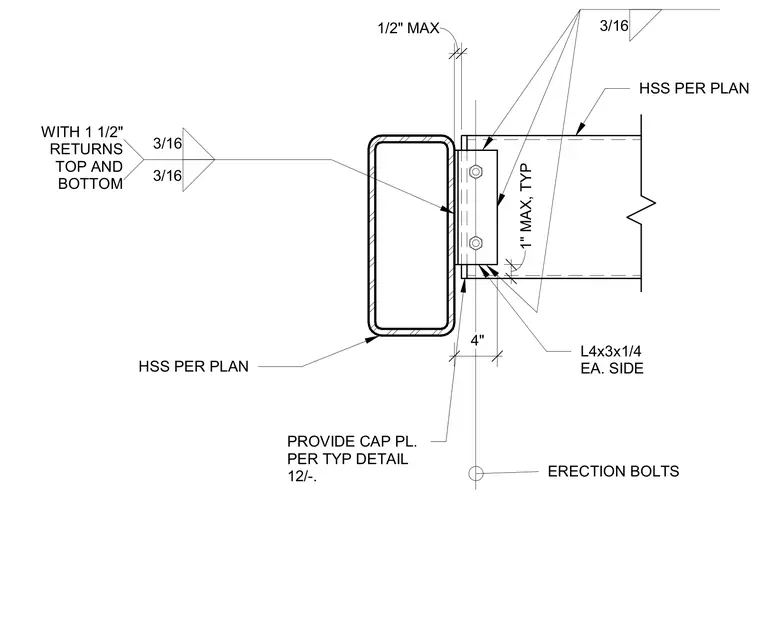

A hollow structural section beam frames into a hollow structural section member using structural angles connected to each side. Erection bolts secure the assembly during installation before final welding is completed. A three-sixteenth-inch fillet weld with one-and-one-half-inch returns at the top and bottom secures the connection. A cap plate is provided per standard details.
ERECTION BOLTS L4x3x1/4 EA. SIDE HSS PER PLAN HSS PER PLAN 3/16 3/16 WITH 1 1/2" RETURNS TOP AND BOTTOM PROVIDE CAP PL. PER TYP DETAIL 12/-. 3/16 1/2" MAX 1" MAX, TYP 4"
