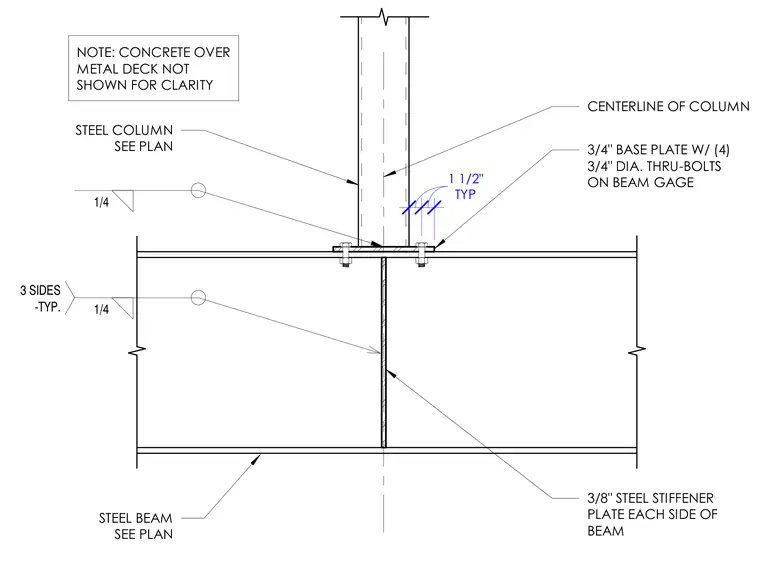

A steel column connects to a steel beam flange using a three-quarter-inch base plate secured with four three-quarter-inch diameter thru-bolts on the beam gage. Three-eighth-inch steel stiffener plates are welded to each side of the beam web beneath the column footprint using one-quarter-inch fillet welds on three sides typical. Concrete over metal deck is omitted for clarity.
STEEL BEAM SEE PLAN STEEL COLUMN SEE PLAN 3/8" STEEL STIFFENER PLATE EACH SIDE OF BEAM CENTERLINE OF COLUMN 1/4 1/4 3 SIDES -TYP. TYP 1 1/2" TYP 1 1/2" 3/4" BASE PLATE W/ (4) 3/4" DIA. THRU-BOLTS ON BEAM GAGE NOTE: CONCRETE OVER METAL DECK NOT SHOWN FOR CLARITY
