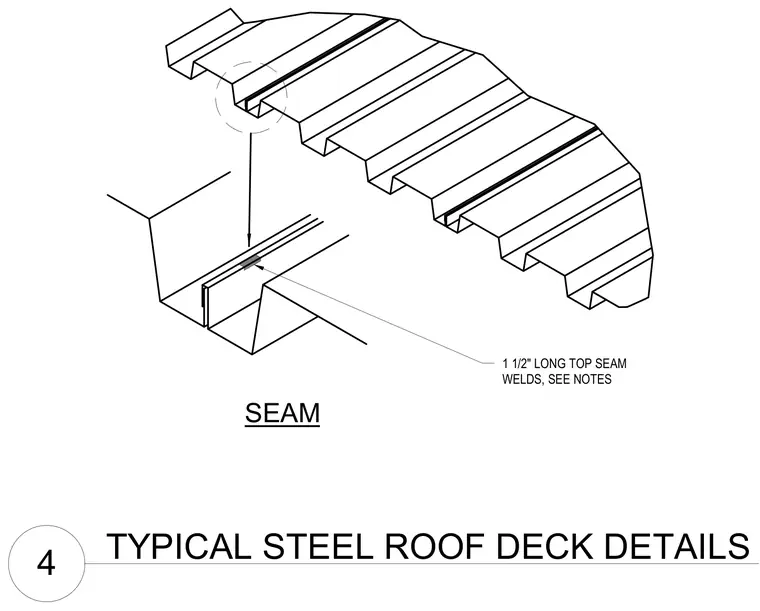

Adjacent steel roof deck panels are secured along their side laps with one and a half inch long top seam welds. The welded connection maintains structural continuity across the metal deck profile. Field installation must follow structural drawing notes for weld spacing and size.
