Structural · S-QQ934

Haunched Wide Flange Beam Connection and Cope Details

Materials

About this detail

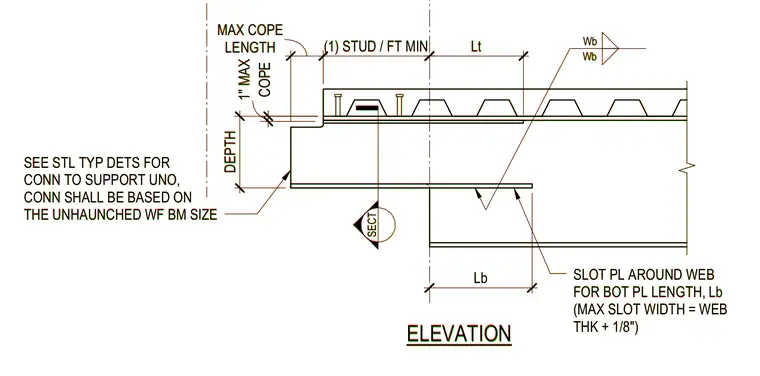

A haunched wide flange beam connection features a maximum one-inch cope and a slot plate around the web for the bottom plate length, designated as Lb, with a maximum slot width equal to the web thickness plus one-eighth of an inch. A top plate of length Lt spans the top flange beneath a concrete slab reinforced with a minimum of one shear stud per foot. Connections to the support are based on the unhaunched wide flange beam size unless otherwise noted on standard structural details.
