An eight-inch concrete retaining wall connects to a continuous concrete footing sized per plan, with reinforcing bars extending into the footing. A concrete slab on grade ties into the wall via number four slab dowels measuring twenty-four inches by twenty-four inches spaced at eighteen inches on center. The wall contains number five vertical reinforcing bars centered at fourteen inches on center each way with alternate bend hooked dowels. A handrail mounts to the top of the wall where specified by architectural drawings.

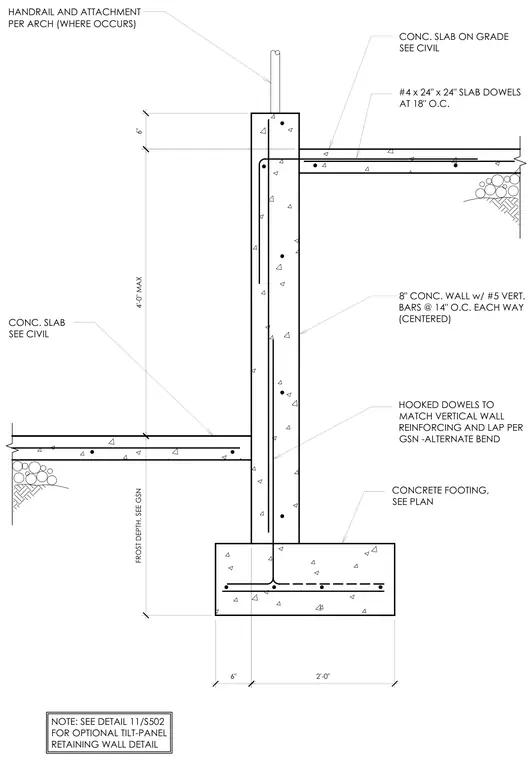

HANDRAIL AND ATTACHMENT PER ARCH (WHERE OCCURS) CONC. SLAB ON GRADE SEE CIVIL #4 x 24" x 24" SLAB DOWELS AT 18" O.C. 8" CONC. WALL w/ #5 VERT. BARS @ 14" O.C. EACH WAY (CENTERED) HOOKED DOWELS TO MATCH VERTICAL WALL REINFORCING AND LAP PER GSN -ALTERNATE BEND CONC. SLAB SEE CIVIL FROST DEPTH, SEE GSN 4'-0" MAX 6" 6" 2'-0" NOTE: SEE DETAIL 11/S502 FOR OPTIONAL TILT-PANEL RETAINING WALL DETAIL CONCRETE FOOTING, SEE PLAN
