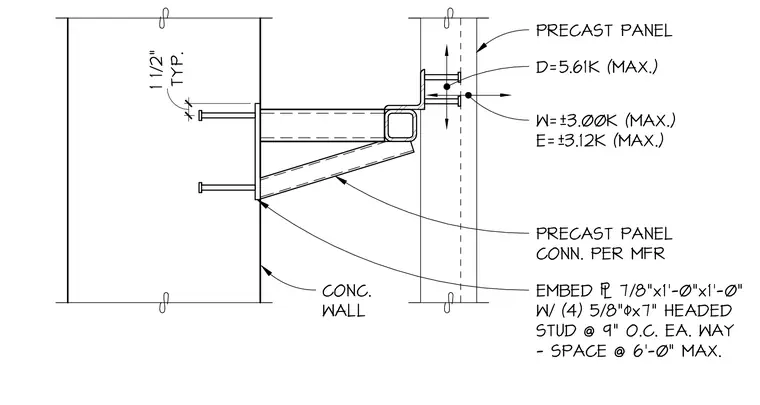

A structural steel bracket connects a precast concrete panel to a concrete wall. The wall assembly features a seven-eighths-inch by one-foot by one-foot embed plate secured with four five-eighths-inch diameter by seven-inch headed studs spaced at nine inches on center each way, with a maximum spacing of six feet. The bracket supports the precast panel designed for a maximum dead load of 5.61 kips, wind load of plus or minus 3.00 kips, and seismic load of plus or minus 3.12 kips. The precast panel connection is detailed per the manufacturer.
PRECAST PANEL CONN. PER MFR CONC. WALL EMBED 7/8"x1' -0"x1'-0" W/ (4) 5/8"!x7" HEADED STUD @ 9" O.C. EA. WAY - SPACE @ 6'-0" MAX. PRECAST PANEL D=5.61K (MAX.) W=±3.00K (MAX.) E=±3.12K (MAX.) TYP. 1 1/2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
