A continuous L6x4x5/16 ledger angle anchors to the concrete wall using three-quarter-inch diameter stud anchors spaced at twelve inches on center, starting bolts six inches from the end. A continuous number five reinforcing bar runs horizontally through the wall. Simpson F hangers support four-by-six number two Douglas Fir framing at four feet on center, with four-by-twelve members used where applicable. Two seven-eighth-inch diameter through bolts connect the framing assembly inside each leg, supplemented by a two-and-a-half-by-two-and-a-quarter angle on each side with long leg vertical. Straps and pins are applied per nailing notes.

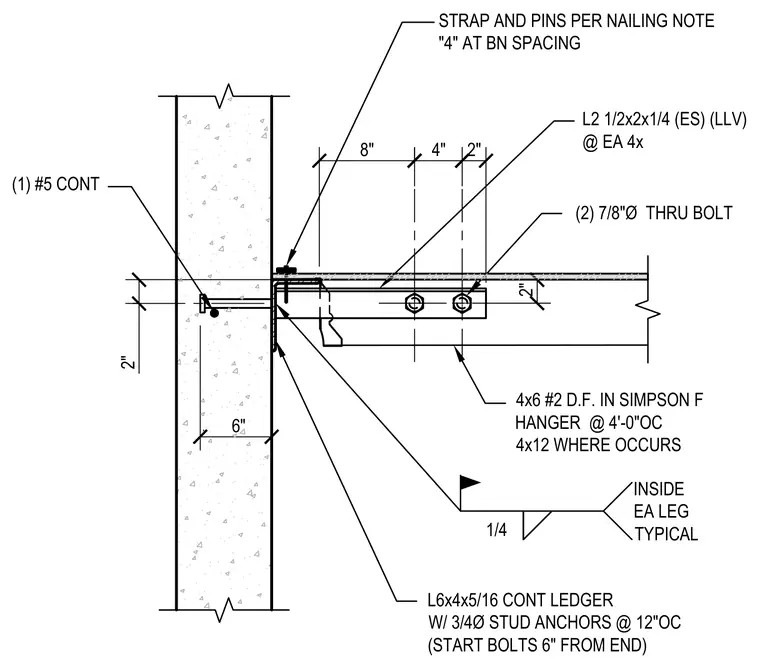

L2 1/2x2x1/4 (ES) (LLV) @ EA 4x 4x6 #2 D.F. IN SIMPSON F HANGER @ 4'-0"OC 4x12 WHERE OCCURS L6x4x5/16 CONT LEDGER W/ 3/4Ø STUD ANCHORS @ 12"OC (START BOLTS 6" FROM END) (1) #5 CONT 2" 8" 6" (2) 7/8"Ø THRU BOLT 2" 2" 1/4 INSIDE EA LEG TYPICAL 4" STRAP AND PINS PER NAILING NOTE "4" AT BN SPACING
