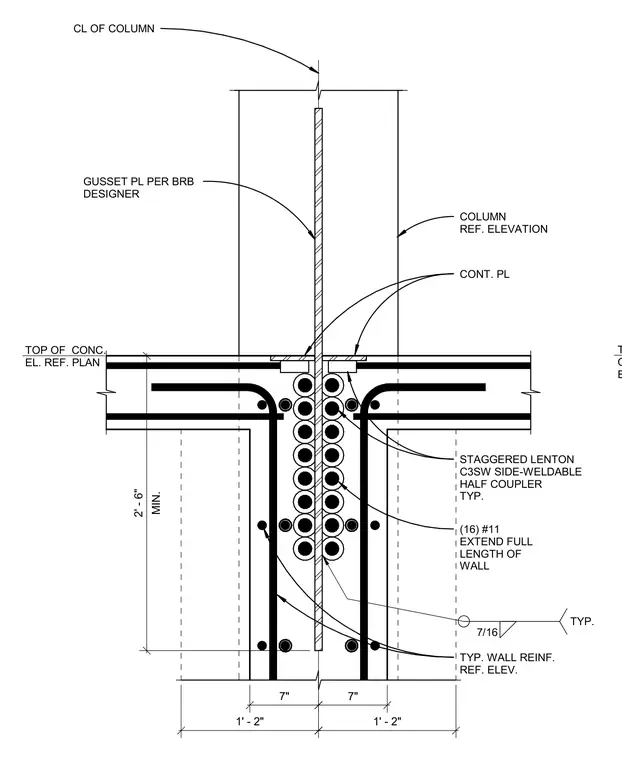

A structural concrete wall collector features a gusset plate sized per the buckling-restrained brace designer, centered along the column reference elevation. Sixteen number 11 reinforcing bars extend the full length of the wall with typical wall reinforcement referenced per elevation. Staggered Lenton C3SW side-weldable half couplers are integrated into the assembly with continuous plates. A seven-sixteenth-inch typical weld secures the connection components.
TOP OF CONC. EL. REF. PLAN CL OF COLUMN COLUMN REF. ELEVATION GUSSET PL PER BRB DESIGNER TOP OF CONC. EL. REF. PLAN (16) #11 EXTEND FULL LENGTH OF WALL TYP. WALL REINF. REF. ELEV. 7/16 TYP. STAGGERED LENTON C3SW SIDE-WELDABLE HALF COUPLER TYP. 7" 1' - 2" 7" 1' - 2" MIN. 2' - 6" CONT. PL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
