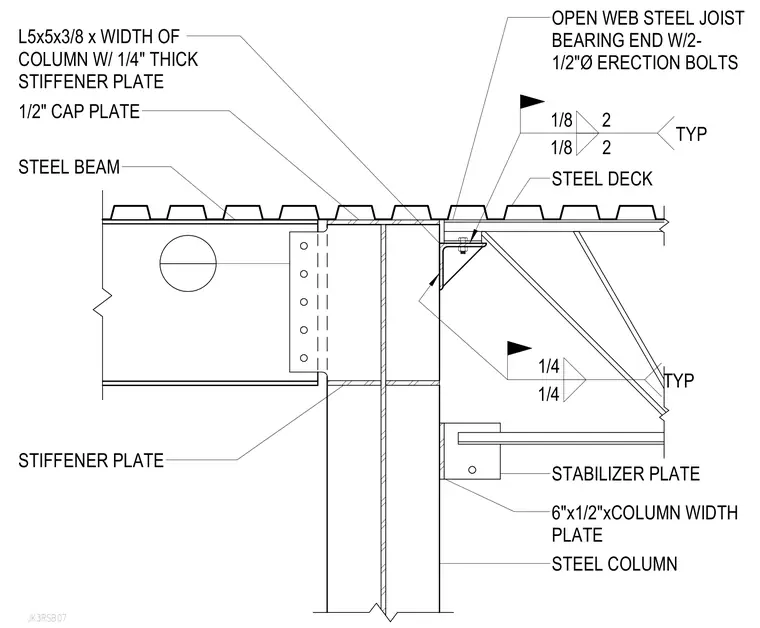

An open web steel joist bears on an L5x5x3/8 angle matching the width of the column, equipped with one-quarter-inch thick stiffener plates and secured with two half-inch diameter erection bolts. A steel beam frames into the steel column beneath a half-inch cap plate, featuring a one-quarter-inch fillet weld typical configuration. A six-inch by half-inch by column-width plate with a stabilizer plate provides additional structural support along the steel column.
JK3RSB07 STIFFENER PLATE 1/2" CAP PLATE STEEL BEAM OPEN WEB STEEL JOIST BEARING END W/2- 1/2"Ø ERECTION BOLTS L5x5x3/8 x WIDTH OF COLUMN W/ 1/4" THICK STIFFENER PLATE STEEL DECK STEEL COLUMN 6"x1/2"xCOLUMN WIDTH PLATE STABILIZER PLATE 1/8 2 1/8 2 TYP 1/4 1/4 TYP
