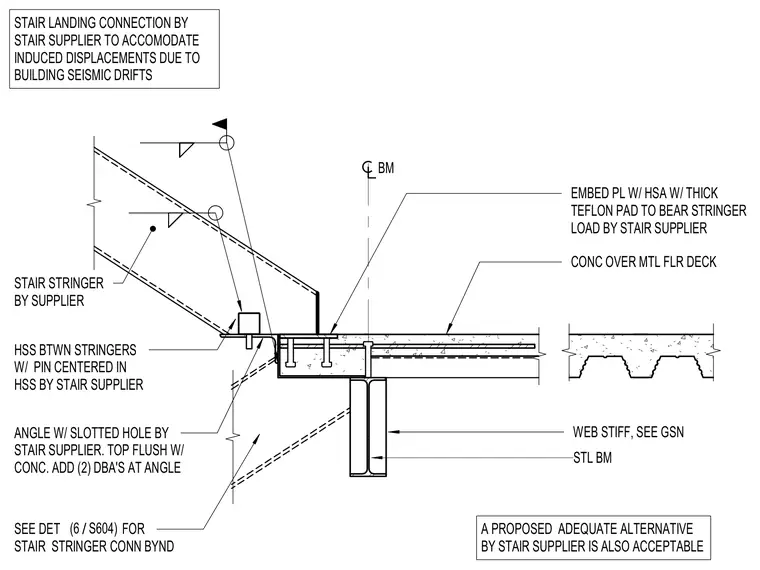

This seismic stair landing connection accommodates induced displacements from building seismic drifts through a sliding stair stringer interface. The stair stringer rests on a hollow structural section situated between stringers, featuring a pin centered in the hollow structural section by the stair supplier. An angle with a slotted hole is positioned flush with the top of the concrete, anchored by two deformed bar anchors. The concrete slab over the metal floor deck bears on an embed plate with headed stud anchors and a thick Teflon pad. A steel beam supports the embedded assembly, complete with web stiffeners per general structural notes.
ANGLE W/ SLOTTED HOLE BY STAIR SUPPLIER. TOP FLUSH W/ CONC. ADD (2) DBA'S AT ANGLE STL BM BM CONC OVER MTL FLR DECK EMBED PL W/ HSA W/ THICK TEFLON PAD TO BEAR STRINGER LOAD BY STAIR SUPPLIER HSS BTWN STRINGERS W/ PIN CENTERED IN HSS BY STAIR SUPPLIER STAIR STRINGER BY SUPPLIER STAIR LANDING CONNECTION BY STAIR SUPPLIER TO ACCOMODATE INDUCED DISPLACEMENTS DUE TO BUILDING SEISMIC DRIFTS WEB STIFF, SEE GSN SEE DET FOR STAIR STRINGER CONN BYND / (6 S604) A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE
