Structural · S-QNVQY

Commercial Exhaust Hood Suspension and Bracing Details

Materials

Steel

Elements

Beams Ceilings Arches Bracing Connections / Plates

Connections

Bracing Connection Bolted Connection

About this detail

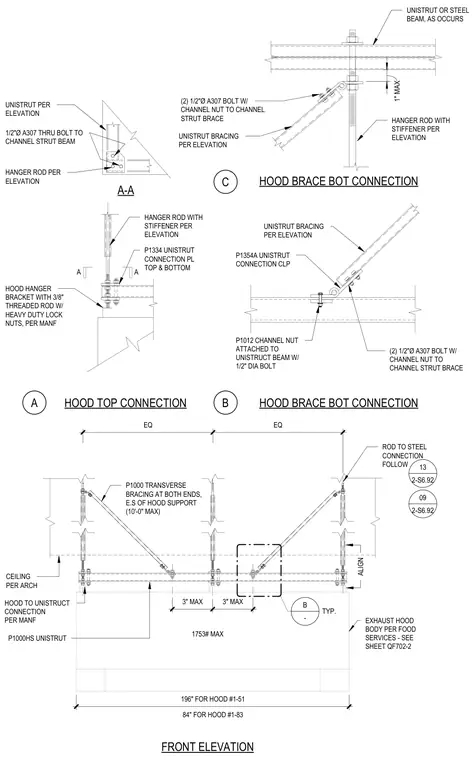

Structural suspension and bracing assembly for a commercial exhaust hood connected to overhead steel framing or Unistrut channels. The top connection utilizes a P1334 Unistrut connection plate at the top and bottom of the hood hanger bracket, secured with three-eighths inch threaded rods and heavy-duty lock nuts. Transverse bracing utilizes Unistrut channels and P1354A connection clips, attached with two half-inch diameter A307 bolts and P1012 channel nuts. The main support incorporates P1000HS Unistrut framing spaced with equal dimensions to support exhaust hood bodies up to 1,753 pounds maximum. Hanger rods include stiffeners and connect back to the overhead Unistrut or structural steel beam.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
