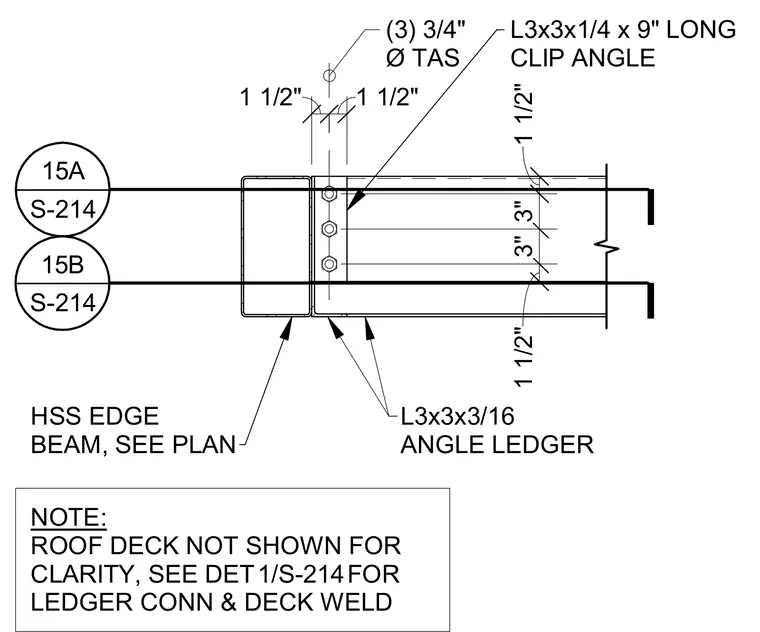

This plan detail shows a fill beam framing into a hollow structural section edge beam using a L3x3x1/4 by 9 inches long clip angle fastened with three 3/4-inch diameter threaded anchor studs. An L3x3x3/16 angle ledger runs along the member as noted. The roof deck is omitted for clarity, with reference made to another detail for ledger connection and deck welds.
HSS EDGE BEAM, SEE PLAN 1 1/2" 1 1/2" (3) 3/4" Ø TAS L3x3x1/4 x 9" LONG CLIP ANGLE 1 1/2" 3" 3" 1 1/2" L3x3x3/16 ANGLE LEDGER NOTE: ROOF DECK NOT SHOWN FOR CLARITY, SEE DET ------- FOR LEDGER CONN & DECK WELD 1/S-214 15B S-214 _______________ 15A S-214 _______________
