Structural · S-QNT8V

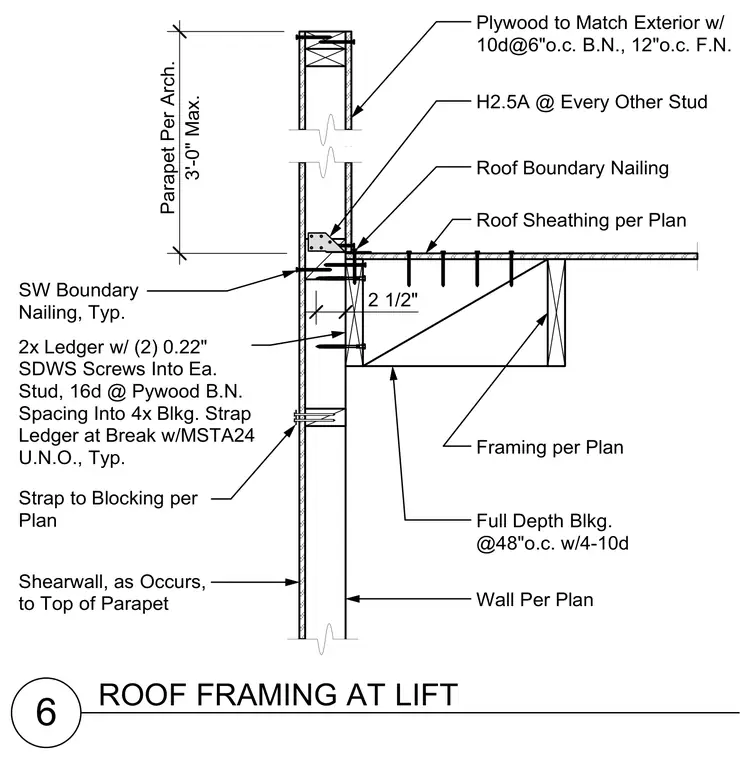

Roof Framing at Wood Stud Wall and Parapet

Materials

Elements

About this detail

Roof sheathing rests on framing per plan and is fastened with boundary nailing. A double two-by ledger connects to the wall studs using two 0.22-inch structural wood screws into each stud, with sixteen-penny nails at plywood boundary nailing spacing into four-by blocking. A strap ledger at the break utilizes an MSTA24 strap unless noted otherwise. An H2.5A tie fastens to every other stud. Full-depth blocking occurs at forty-eight inches on center with four ten-penny nails. Exterior plywood matches the exterior and is attached with ten-penny nails at six inches on center for boundary nailing and twelve inches on center for field nailing, extending up to the top of the parapet.
