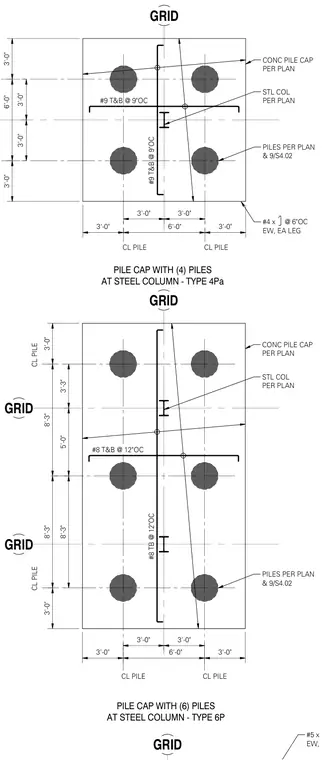

Concrete pile caps support structural steel columns sized per plan, featuring four-pile and six-pile configurations. The four-pile cap type 4Pa includes nine gauge top and bottom reinforcement bars spaced at nine inches on center, with four gauge stirrups spaced at six inches on center in each direction and on each leg. The six-pile cap type 6P includes eight gauge top and bottom reinforcement bars spaced at twelve inches on center. Both pile cap configurations are dimensioned relative to gridlines and pile centerlines.
GRID CONC PILE CAP PER PLAN STL COL PER PLAN 3'-0" 6'-0" 3'-0" CL PILE CL PILE 3'-0" 3'-0" 3'-0" 8'-3" 8'-3" 3'-0" 3'-3" 5'-0" 8'-3" GRID GRID PILE CAP WITH (6) PILES AT STEEL COLUMN - TYPE 6P PILES PER PLAN & 9/S4.02 CL PILE CL PILE GRID #8 TB @ 12"OC #8 T&B @ 12"OC GRID CONC PILE CAP PER PLAN STL COL PER PLAN PILES PER PLAN & 9/S4.02 3'-0" 6'-0" 3'-0" CL PILE CL PILE 3'-0" 3'-0" 3'-0" 6'-0" 3'-0" 3'-0" 3'-0" CL PILE CL PILE PILE CAP WITH (4) PILES AT STEEL COLUMN - TYPE 4Pa #9 T&B @ 9"OC #9 T&B @ 9"OC #5 x @ 9"OC EW, EA LEG #4 x @ 6"OC EW, EA LEG
