Structural · S-QNN2F

Permanent Soldier Beam Cross Section

Elements

About this detail

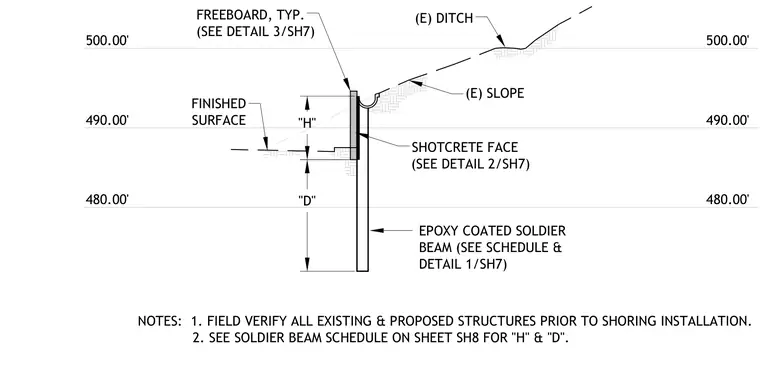

An epoxy-coated soldier beam extends downward into the ground with embedment depth "D" below the finished surface, while height "H" extends upward to support a shotcrete face. Typical freeboard extends above the finished surface adjacent to an existing slope and drainage ditch. Elevation contours at 480.00 feet, 490.00 feet, and 500.00 feet establish vertical grading limits for the shoring wall assembly. Field verification of all existing and proposed structures is required prior to shoring installation, and beam dimensions "H" and "D" are sized per the structural schedule.
