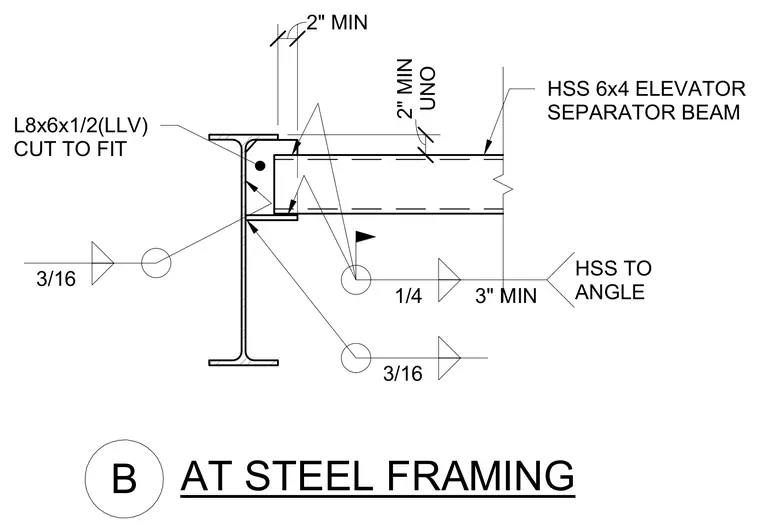

An HSS 6x4 elevator separator beam connects to a supporting steel framing member using an L8x6x1/2 angle cut to fit. A three-sixteenths inch fillet weld secures the angle to the supporting steel member, while a one-quarter inch fillet weld connects the HSS beam to the angle. Minimum two-inch clearances are maintained at the top and end of the beam unless noted otherwise. A three-inch minimum dimension establishes the setback from the structural grid line.
HSS 6x4 ELEVATOR SEPARATOR BEAM AT STEEL FRAMING B L8x6x1/2(LLV) CUT TO FIT 2" MIN UNO 2" MIN 1/4 3" MIN HSS TO ANGLE 3/16 3/16
