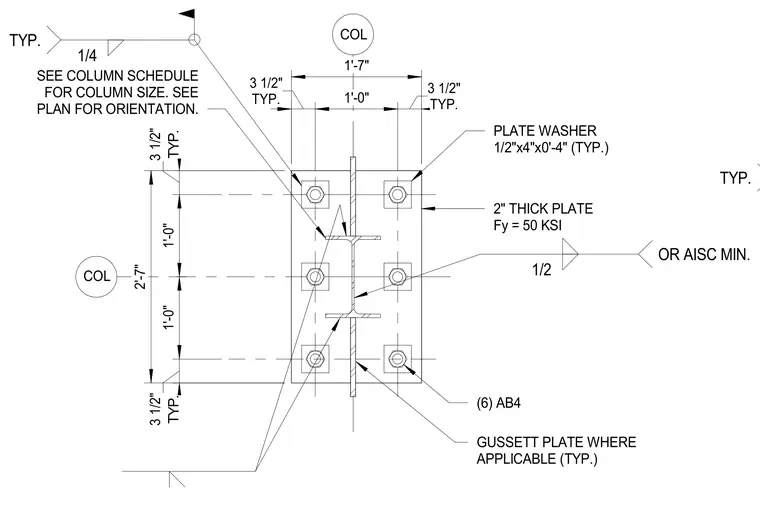

A two-inch thick steel base plate with a yield strength of fifty kilopounds per square inch anchors the column to the foundation. Six anchor bolts secure the assembly, each equipped with a one-half by four by four-inch plate washer typical at all locations. A gusset plate is welded where applicable with a one-quarter inch fillet weld or AISC minimum size. The column size is determined per the column schedule and orientation is established per the structural plan.
2" THICK PLATE Fy = 50 KSI (6) AB4 PLATE WASHER 1/2"x4"x0'-4" (TYP.) 2'-7" COL COL TYP. 3 1/2" 1'-0" 1'-0" TYP. 3 1/2" GUSSETT PLATE WHERE APPLICABLE (TYP.) SEE COLUMN SCHEDULE FOR COLUMN SIZE. SEE PLAN FOR ORIENTATION. 1'-7" TYP. 3 1/2" 1'-0" TYP. 3 1/2" 1/4 TYP. 1/2 OR AISC MIN. TYP.
