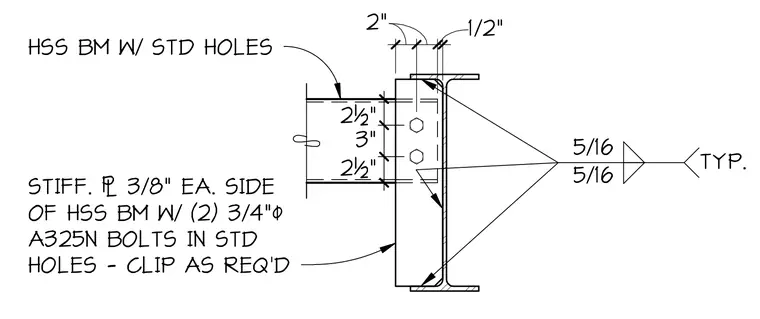

A hollow structural section beam with standard holes connects to a supporting member using three-eighths-inch stiffener plates on each side of the beam web. The assembly is secured with two three-quarter-inch A325N bolts in standard holes with clips sized as required. Five-sixteenth-inch typical fillet welds attach the connection plates to the supporting member flange.
2½" 3" 2½" 2" 2" 1/2" 5/16 5/16 TYP. STIFF. + 3/8" EA. SIDE OF HSS BM W/ (2) 3/4" A325N BOLTS IN STD HOLES - CLIP AS REQ'D HSS BM W/ STD HOLES
