Structural · S-QN7HN

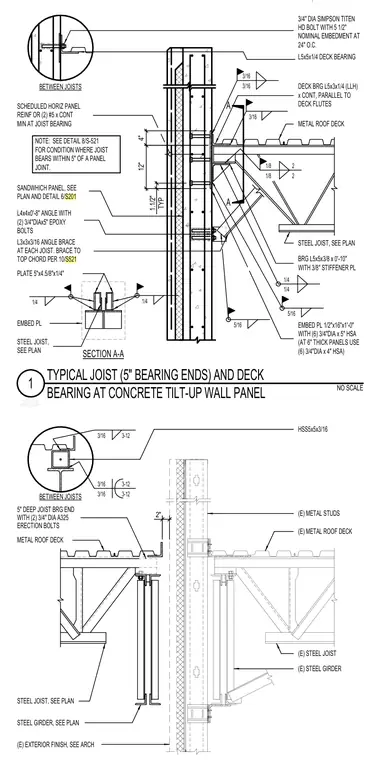

Typical Joist (5" Bearing Ends) And Deck

Materials

Concrete Steel Cold-formed Steel Metal (misc.)

Elements

Beams Walls Roofs Decks Arches Bracing Expansion / Control Joints Anchors / Embeds Connections / Plates

Connections

Bracing Connection Bolted Connection Embed Plate Expansion / Slip Connection Timber / Mass-Timber Connection

About this detail

A steel roof joist bears on a bearing angle configured with a stiffener plate and connects to a half-inch thick embed plate anchored with six three-quarter-inch diameter HSA bolts at a concrete tilt-up wall panel. The metal deck bears on an L5x3x1/4 continuous angle running parallel to the deck flutes, tied back with three-quarter-inch diameter Simpson Titen HD bolts embedded five and a half inches at twenty-four inches on center. Additional stability is provided by an L3x3x3/16 angle brace at each joist and an L4x4 angle secured with two three-quarter-inch diameter epoxy bolts into the sandwich panel.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
