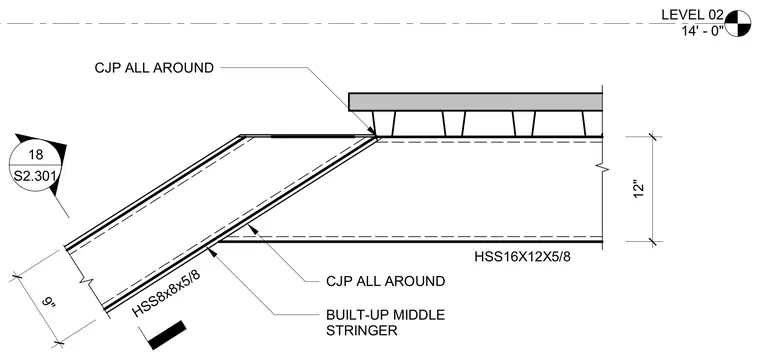

A built-up middle stair stringer formed from an HSS8x8x5/8 hollow structural section frames into an HSS16x12x5/8 structural member at the Level 02 landing. The joint features complete joint penetration welds specified as CJP all around connecting the members. The structural steel assembly sits beneath the Level 02 floor slab elevation at fourteen feet zero inches.
LEVEL 02 14' - 0" HSS16X12X5/8 12" 9" CJP ALL AROUND BUILT-UP MIDDLE STRINGER CJP ALL AROUND 18 S2.301 HSS8x8x5/8
