Structural · S-QMVXT

Low Roof Deck at Interior Atrium Framing Connection

Materials

Steel Timber / Wood Glass / Glazing

Elements

Beams Windows Roofs Decks Arches Bracing Insulation

Connections

Bracing Connection

About this detail

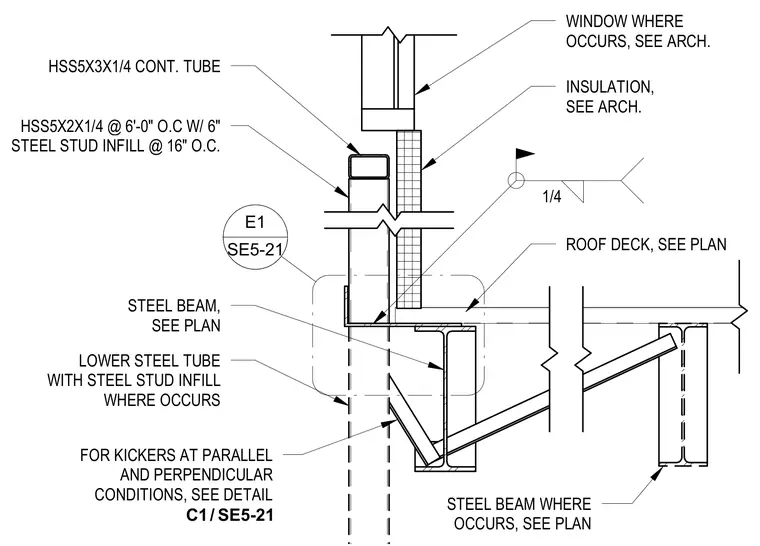

A continuous hollow structural section member HSS5x3x1/4 bears above a steel beam located per plan, with vertical HSS5x2x1/4 members spaced at six feet on center containing six-inch steel stud infill at sixteen inches on center. A lower steel tube with steel stud infill supports the assembly where required, tied with structural steel kickers for parallel and perpendicular conditions as detailed on sheet C1 of SE5-21. A one-quarter-inch fillet weld connects structural elements, while the roof deck, insulation, and windows are installed per architectural drawings.
