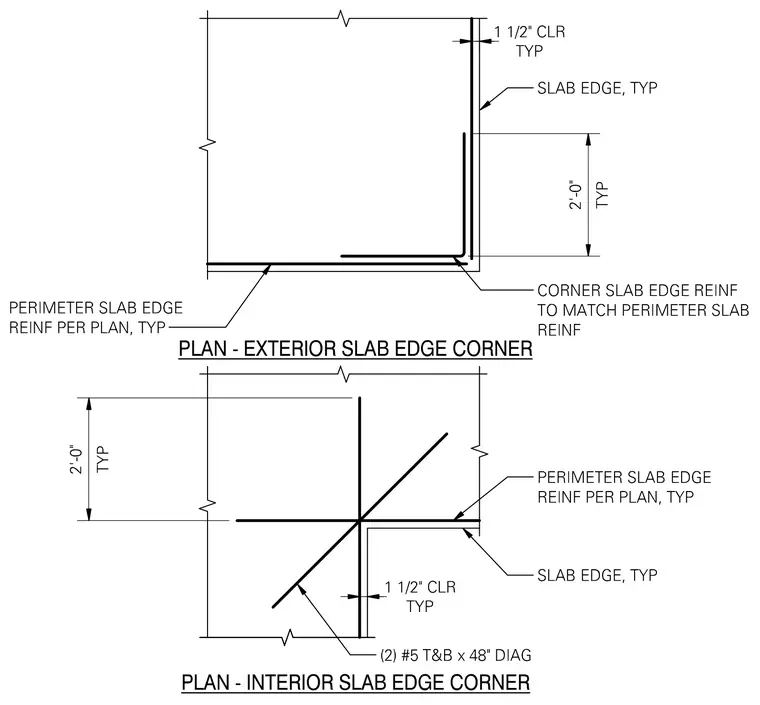

Perimeter slab edge reinforcement continues around exterior and interior concrete slab corners with a typical 1 1/2 inch clearance. Corner slab edge reinforcement matches the perimeter slab edge reinforcement per plan, extending two feet typically from the corner. Interior corners additionally incorporate two number 5 top and bottom by 48 inch diagonal reinforcing bars placed across the reentrant corner junction.
