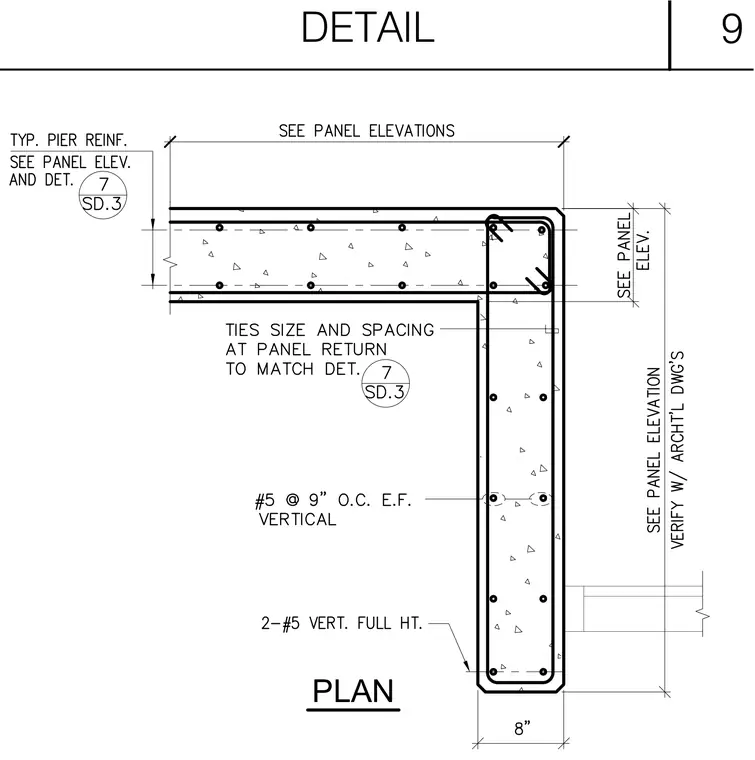

A concrete wall pier corner plan detail featuring number five vertical reinforcing bars at nine inches on center each face, supplemented by two number five vertical bars running full height at the corner. The corner return ties are sized and spaced in accordance with detail seven on sheet SD.3. Typical pier reinforcement is referenced to panel elevations and details on sheet SD.3, with panel elevations coordinated against architectural drawings.
