Cold-formed steel stud framing details show connection layouts at corners, intersections, and ends. Each condition fastens studs to continuous tracks using number 10 screws at each stud unless otherwise noted. Additional number 10 screws are spaced at twelve inches on center where framing meets. Locations are specified on the structural plans.

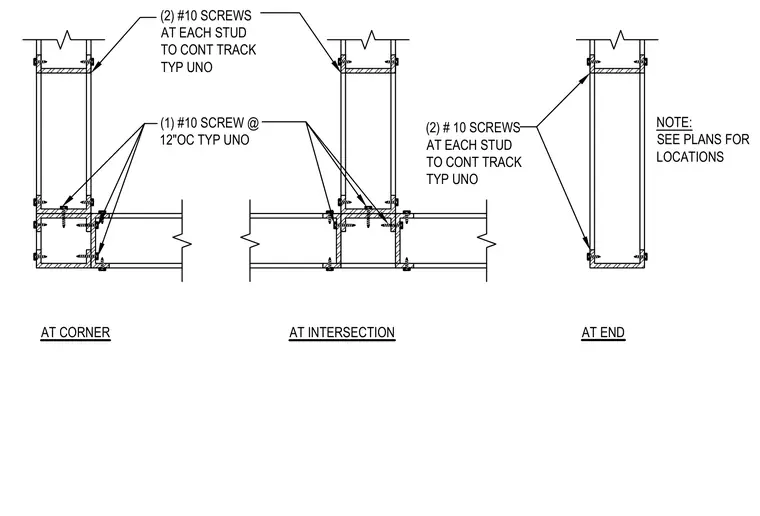

AT END AT INTERSECTION AT CORNER (2) #10 SCREWS AT EACH STUD TO CONT TRACK TYP UNO (1) #10 SCREW @ 12"OC TYP UNO (2) # 10 SCREWS AT EACH STUD TO CONT TRACK TYP UNO NOTE: SEE PLANS FOR LOCATIONS
