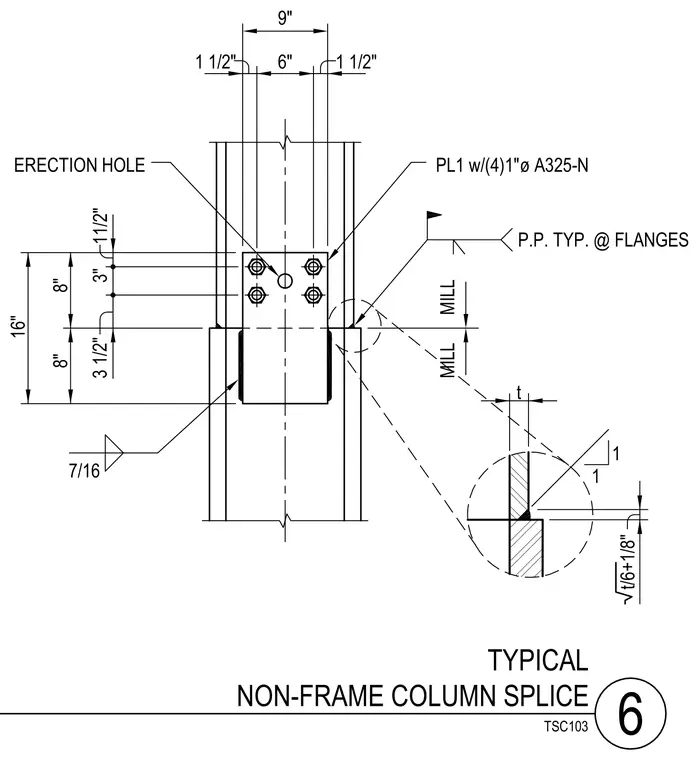

A typical non-frame column splice connects vertical steel column sections. The connection is made using splice plate PL1 fastened with four 1-inch diameter A325-N bolts and features an erection hole. The column flanges receive partial joint penetration welds, designated as P.P. typical at flanges, with mill tolerance clearances and a 7/16-inch fillet weld detail. A zoomed-in callout details the flange edge preparation and root opening dimensions related to thickness t.
TYPICAL NON-FRAME COLUMN SPLICE 6 9" 1 1/2" 6" 1 1/2" ERECTION HOLE PL1 w/(4)1"ø A325-N P.P. TYP. @ FLANGES MILL MILL t 1 1 t/6+1/8" 7/16 3 1/2" 8" 16" 8" 3" 11/2" TSC103
