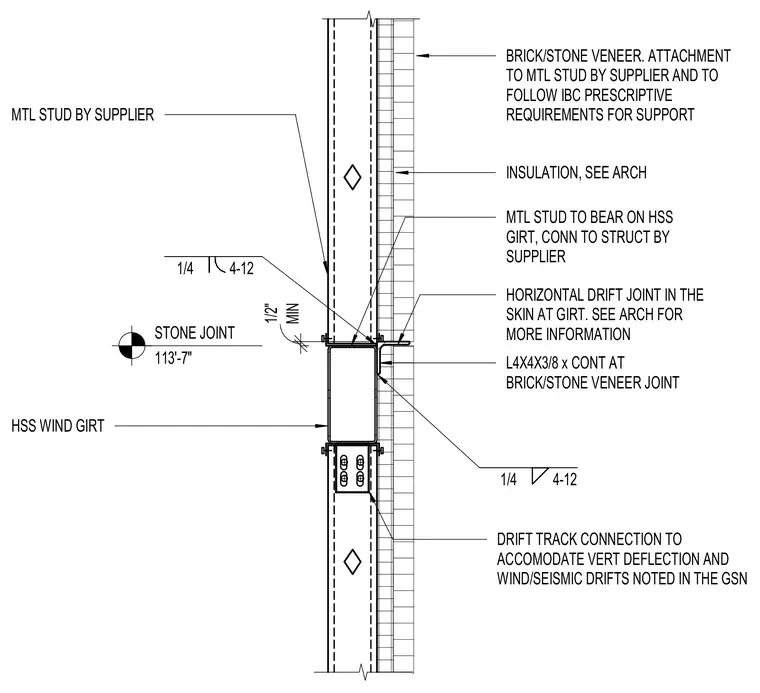

A hollow structural section wind girt supports continuous metal studs bearing on the girt with a drift track connection designed to accommodate vertical deflection and seismic drifts. A continuous L4x4x3/8 angle is provided at the brick and stone veneer joint, which incorporates a minimum half-inch horizontal drift joint in the skin. Insulation and veneer attachments follow architectural and International Building Code prescriptive requirements.
HSS WIND GIRT MTL STUD BY SUPPLIER INSULATION, SEE ARCH DRIFT TRACK CONNECTION TO ACCOMODATE VERT DEFLECTION AND WIND/SEISMIC DRIFTS NOTED IN THE GSN MTL STUD TO BEAR ON HSS GIRT, CONN TO STRUCT BY SUPPLIER STONE JOINT 113'-7" HORIZONTAL DRIFT JOINT IN THE SKIN AT GIRT. SEE ARCH FOR MORE INFORMATION 1/4 4-12 1/4 4-12 BRICK/STONE VENEER. ATTACHMENT TO MTL STUD BY SUPPLIER AND TO FOLLOW IBC PRESCRIPTIVE REQUIREMENTS FOR SUPPORT L4X4X3/8 x CONT AT BRICK/STONE VENEER JOINT MIN 1/2"
