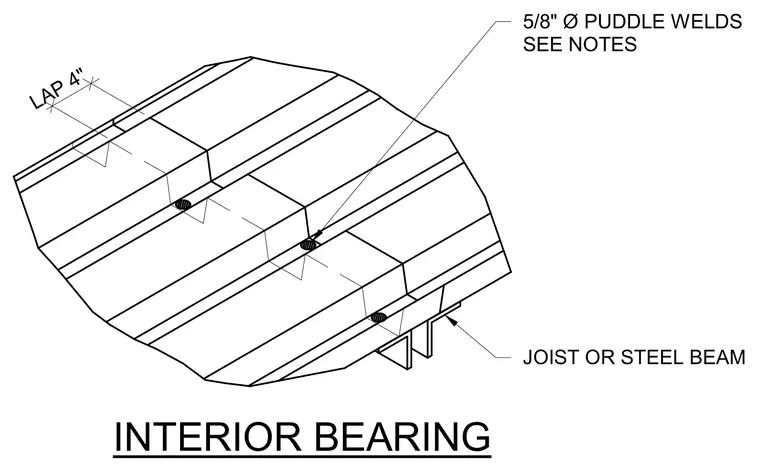

Corrugated metal decking bears directly across the top flange of an interior steel beam or open-web steel joist. The deck sheets require a four-inch side lap and are secured to the supporting steel member using five-eighths-inch diameter puddle welds placed per structural notes.
