A three-by wood nailer matches the beam flange width and is secured with seven-eighths-inch diameter welded threaded rods spaced at six inches on center staggered on the beam with a maximum three-quarter-inch countersink. Place one rod a maximum of nine inches from each end of the nailer and from each splice. Subpurlins and steel beams are sized per plan. Maximum five-inch diameter holes for pipes are located at ten feet on center where applicable, maintaining a pipe centerline between eight and fifteen inches below the sheathing. Boundary nailing is provided at the roof edge.

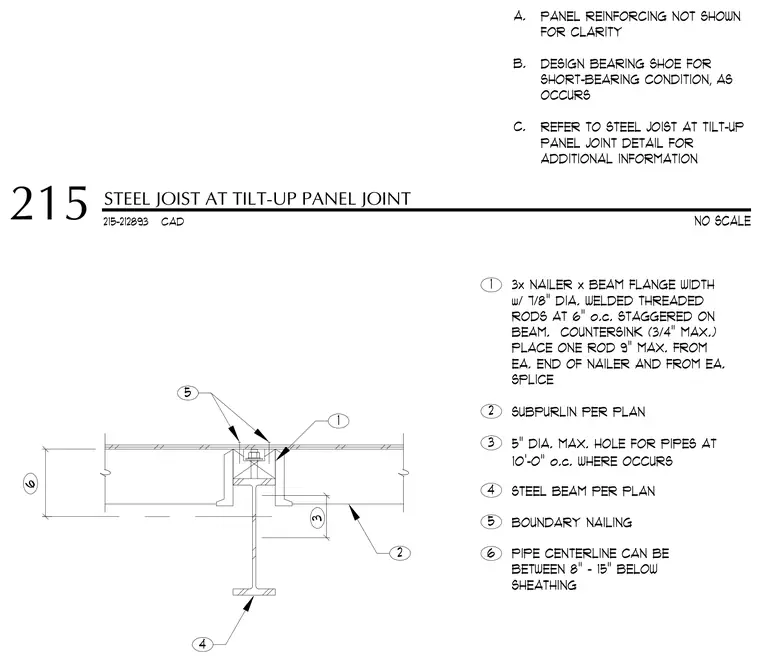

215-212893 CAD A. B. C. PANEL REINFORCING NOT SHOWN FOR CLARITY DESIGN BEARING SHOE FOR SHORT-BEARING CONDITION, AS OCCURS REFER TO STEEL JOIST AT TILT-UP PANEL JOINT DETAIL FOR ADDITIONAL INFORMATION SUBPURLIN PER PLAN 5" DIA. MAX. HOLE FOR PIPES AT 10'-0" o.c. WHERE OCCURS STEEL BEAM PER PLAN 4 3 2 1 3 2 4 1 BOUNDARY NAILING 5 5 PIPE CENTERLINE CAN BE BETWEEN 8" - 15" BELOW SHEATHING 6 3x NAILER x BEAM FLANGE WIDTH w/ 7/8" DIA. WELDED THREADED RODS AT 6" o.c. STAGGERED ON BEAM. COUNTERSINK (3/4" MAX.) PLACE ONE ROD 9" MAX. FROM EA. END OF NAILER AND FROM EA. SPLICE 6 NO SCALE STEEL JOIST AT TILT-UP PANEL JOINT 215
