Structural · S-QKXTJ

Typical Panel Footing at Column

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Columns Floors / Slabs Foundations / Footings Arches Waterproofing / Flashing Insulation Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage

About this detail

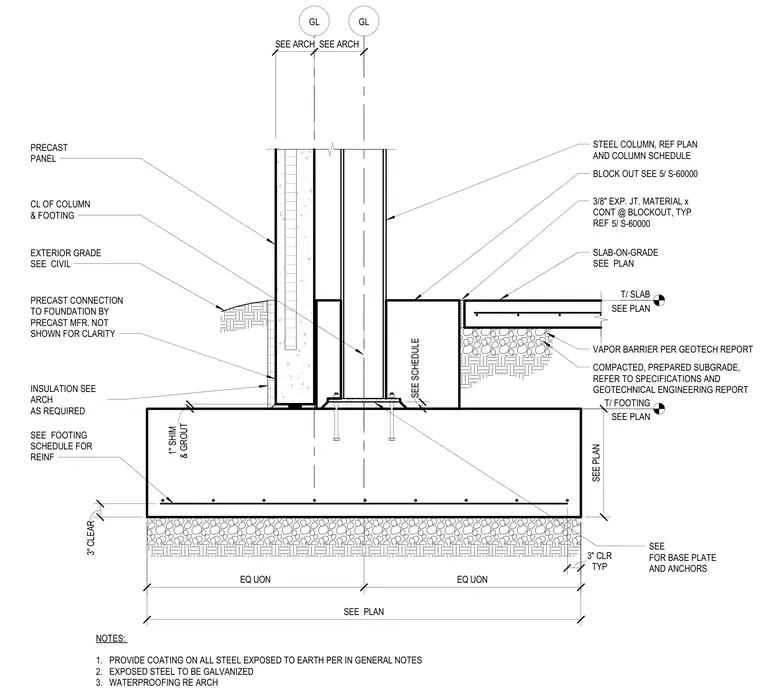

A structural footing supports a steel column and exterior precast concrete wall panel. The steel column bears on a base plate atop the concrete footing, with anchor bolts and leveling shims as detailed in the structural schedules. A precast concrete panel is positioned adjacent to the column, with its foundation connection provided by the precast manufacturer and insulated per architectural requirements. An interior slab-on-grade meets the footing with a continuous three-eighths-inch expansion joint material at a blockout. The concrete footing rests on a compacted, prepared subgrade with a vapor barrier and specified clear cover over reinforcing steel. Protective coatings are required on all steel exposed to earth, and exposed structural steel must be galvanized.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
