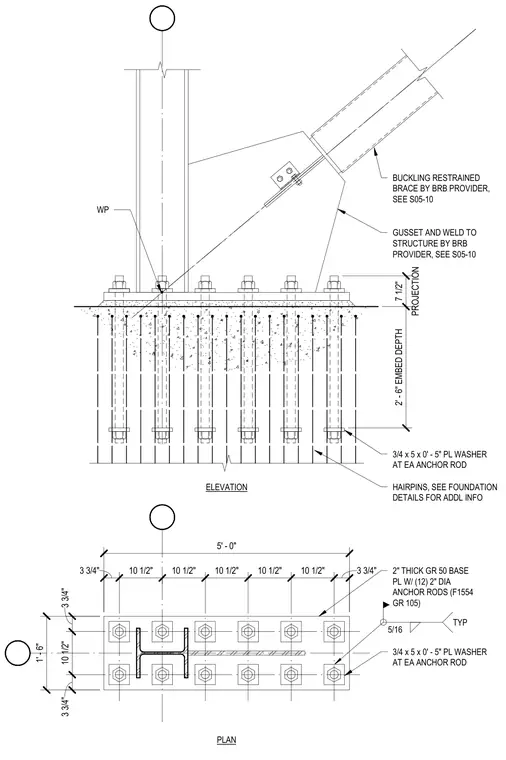

A structural detail presents a buckling restrained brace base plate connection with both elevation and plan views. A steel column and a diagonal buckling restrained brace frame into a two-inch thick Grade 50 steel base plate anchored to a concrete foundation. The base plate is secured by twelve two-inch diameter ASTM F1554 Grade 105 anchor rods with three-quarter by five by five-inch plate washers at each anchor rod and hairpins installed in the foundation. A gusset plate connects the buckling restrained brace to the structure, with sizing and welding per the brace provider. Fillet welds of five-sixteenth inch typical size connect the structural steel elements.
BUCKLING RESTRAINED BRACE BY BRB PROVIDER, SEE S05-10 WP 1' - 6" 5' - 0" 3 3/4" 10 1/2" 10 1/2" 10 1/2" 10 1/2" 10 1/2" 3 3/4" 3 3/4" 10 1/2" 3 3/4" PLAN ELEVATION GUSSET AND WELD TO STRUCTURE BY BRB PROVIDER, SEE S05-10 2' - 6" EMBED DEPTH PROJECTION 7 1/2" 3/4 x 5 x 0' - 5" PL WASHER AT EA ANCHOR ROD 5/16 TYP 3/4 x 5 x 0' - 5" PL WASHER AT EA ANCHOR ROD HAIRPINS, SEE FOUNDATION DETAILS FOR ADDL INFO 2" THICK GR 50 BASE PL W/ (12) 2" DIA ANCHOR RODS (F1554 GR 105)
