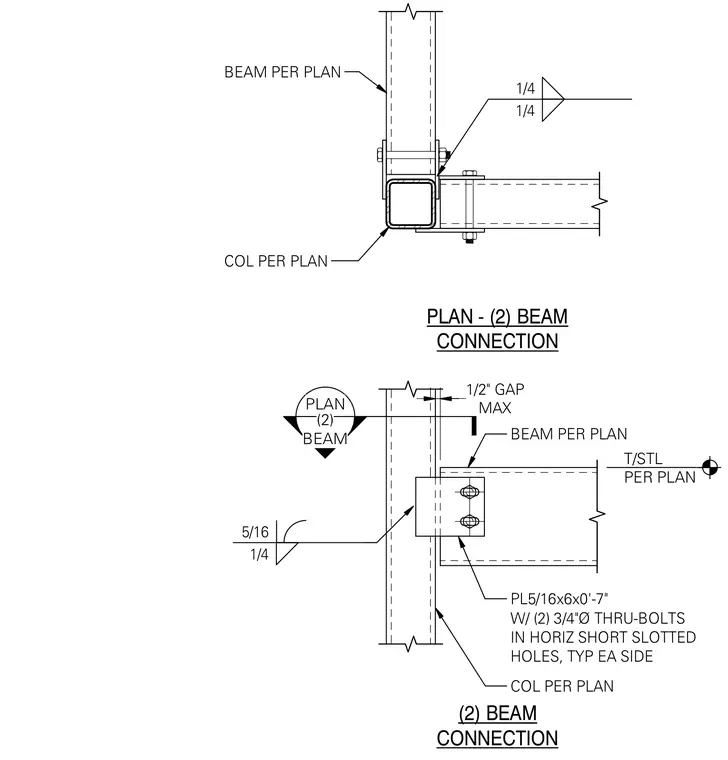

Two steel beams connect to a hollow structural section column using five-sixteenths inch thick connection plates welded to the column with quarter-inch fillet welds and attached to the beams with two three-quarter-inch diameter thru-bolts in horizontal short slotted holes on each side. A maximum half-inch gap is maintained between the beam ends and the column face. Fillet welds of quarter-inch and five-sixteenths inch size secure the connection plates per plan specifications.
COL PER PLAN BEAM PER PLAN PLAN - (2) BEAM CONNECTION PLAN (2) BEAM (2) BEAM CONNECTION T/STL PER PLAN PLAN (2) BEAM 1/4 1/4 COL PER PLAN BEAM PER PLAN PL5/16x6x0'-7" W/ (2) 3/4"Ø THRU-BOLTS IN HORIZ SHORT SLOTTED HOLES, TYP EA SIDE MAX 1/2" GAP 1/4 5/16
