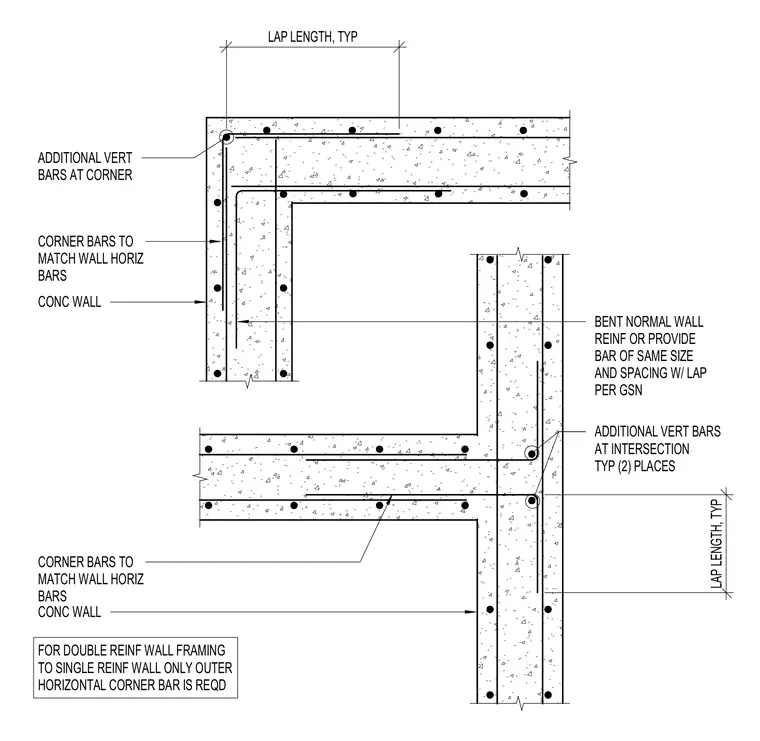

Standard reinforcing bar layout for concrete wall corners and intersections in double reinforced concrete walls. Horizontal wall reinforcing turns the corner as bent normal wall reinforcement, matching the size and spacing of the wall horizontal bars with standard lap lengths per general structural notes. Additional vertical reinforcing bars are provided at the corner and at wall intersections in two places. For double reinforced wall framing transitioning to a single reinforced wall, only the outer horizontal corner bar is required.
ADDITIONAL VERT BARS AT CORNER CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL CORNER BARS TO MATCH WALL HORIZ BARS CONC WALL BENT NORMAL WALL REINF OR PROVIDE BAR OF SAME SIZE AND SPACING W/ LAP PER GSN ADDITIONAL VERT BARS AT INTERSECTION TYP (2) PLACES LAP LENGTH, TYP LAP LENGTH, TYP FOR DOUBLE REINF WALL FRAMING TO SINGLE REINF WALL ONLY OUTER HORIZONTAL CORNER BAR IS REQD
