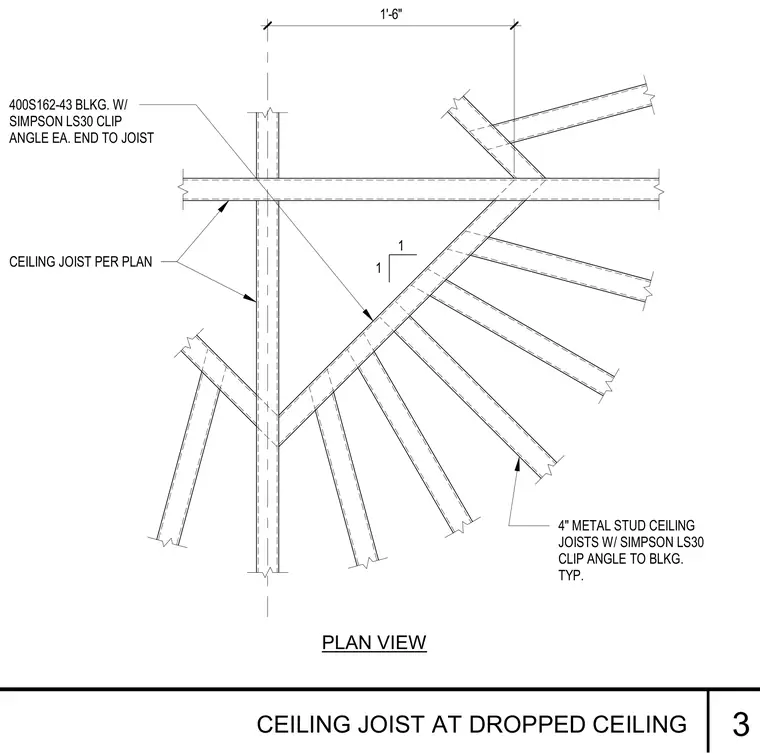

Cold-formed steel ceiling joists connect to a 400S162-43 metal stud blocking member using Simpson LS30 clip angles at each end. Four-inch metal stud ceiling joists span from the blocking at a one foot six inch spacing. The clip angles provide the connection between the framing members typically throughout the assembly.
1'-6" 1 1 CEILING JOIST PER PLAN PLAN VIEW 400S162-43 BLKG. W/ SIMPSON LS30 CLIP ANGLE EA. END TO JOIST 4" METAL STUD CEILING JOISTS W/ SIMPSON LS30 CLIP ANGLE TO BLKG. TYP. CEILING JOIST AT DROPPED CEILING 3
