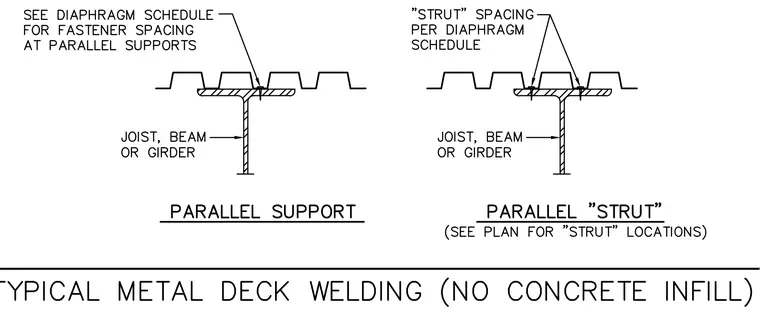

Metal roof or floor decking bears directly on structural steel joists, beams, or girders without concrete infill. Mechanical fasteners secure the deck profile to the supporting steel flange at spacings governed by the structural diaphragm schedule. Parallel support conditions utilize standard fastener spacing, while parallel strut locations require specific fastener spacings per the diaphragm schedule and structural plans.
